WIRE EROSION

At Techni-Form we cut a whole range of materials such as Carbide, Stainless Steel, Inconal, Colbalt Chrome, Titanium, Aluminium, Hardened steels and many more, all of which are cut to precise tolerances.



We cut: Aerospace Parts, Surgical Instruments, Oil & Gas Components, Dies & Punches, Automotive Components, Keyways & Splines, Tool Making & General Engineering.



CHARMILLES ROBOFIL 290 x 2



5 axis Non-Submerged Charmilles CNC WEDM with Auto Wire Thread.

Axis Travel

X 400mm

Y 250mm

Z 200mm

Maximum work piece dimensions.

X 850mm

Y 500mm

Z 200mm

30° Taper Cut

Charmilles control

Non-Submerged Cutting

Auto Wire Thread

Wire capacity 0.1 - 0.3mm

Hand Box Control

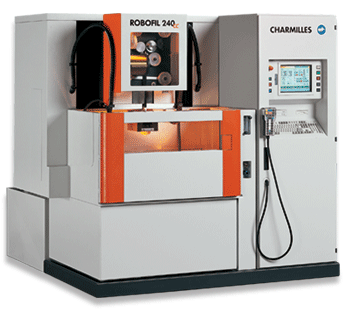

CHARMILLES ROBOFIL 240cc





5 axis Submerged Charmilles CNC WEDM with Auto Wire Thread.

Axis Travel

X 400mm

Y 220mm

Z 200mm

Maximum work piece dimensions.

X 850mm

Y 500mm

Z 200mm

30° Taper Cut.

Charmilles Control

Submerged Cutting

Auto Wire Thread

Wire capacity 0.1 - 0.3mm

Hand Box Control.

CHARMILLES ROBOFIL 230



5 axis Submerged Charmilles CNC WEDM with Auto Wire Thread.

Axis Travel

X 400mm

Y 220mm

Z 200mm

Maximum work piece dimensions.

X 850mm

Y 500mm

Z 200mm

30° Taper Cut.

Charmilles Control

Submerged Cutting

Auto Wire Thread

Wire capacity 0.1 - 0.3mm

Hand Box Control.

CHARMILLES_ROBOFIL_440C_2206_IBCXASCH021

CHARMILLES ROBOFIL 440CC



5 axis Submerged Charmilles CNC WEDM with Auto Wire Thread.

Axis Travel

X 550mm

Y 350mm

Z 375mm

Maximum work piece dimensions.

X 1200mm

Y 700mm

Z 375mm

30° Taper Cut.

Charmilles Control

Submerged Cutting

Auto Wire Thread

Wire capacity 0.1 - 0.3mm

Hand Box Control.
